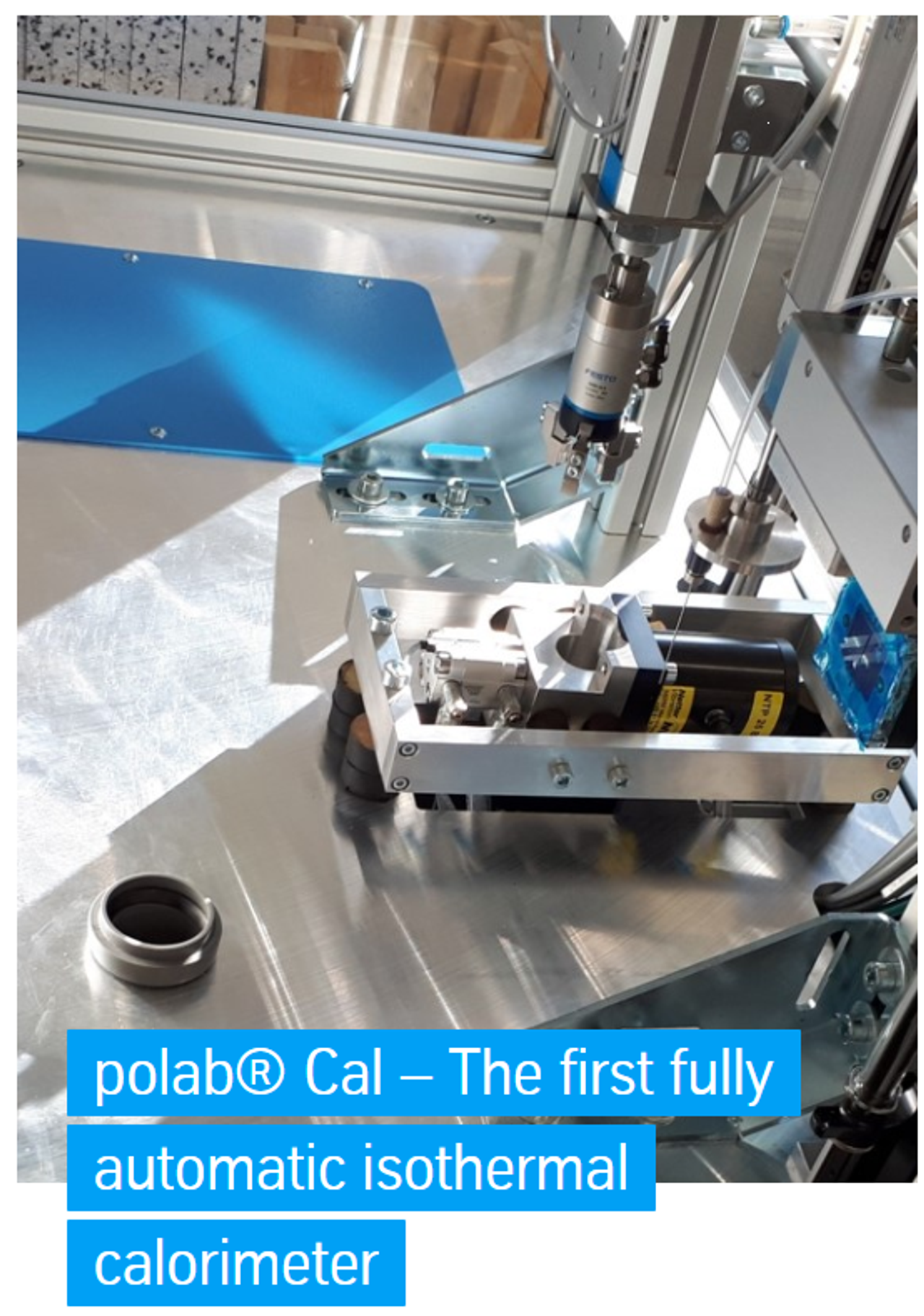

polab® Cal - The first fully automated isothermal calorimeter

The ultimate target in many thermal processes is a product of a certain reactivity or energy content. Chemistry and mineralogy are well known to monitor the stability of processes; however, reactivity can only be anticipated from chemical and mineralogical data. Reactivity can be quantified by measuring heat release over time. A classic example is the heat of hydration of cement. thyssenkrupp has partnered with Calmetrix to pioneer a new field of laboratory automation: the integration of a calorimeter in automated product quality control closes a gap between process and product quality control.

Laboratory automation system or stand-alone unit in R&D and product development

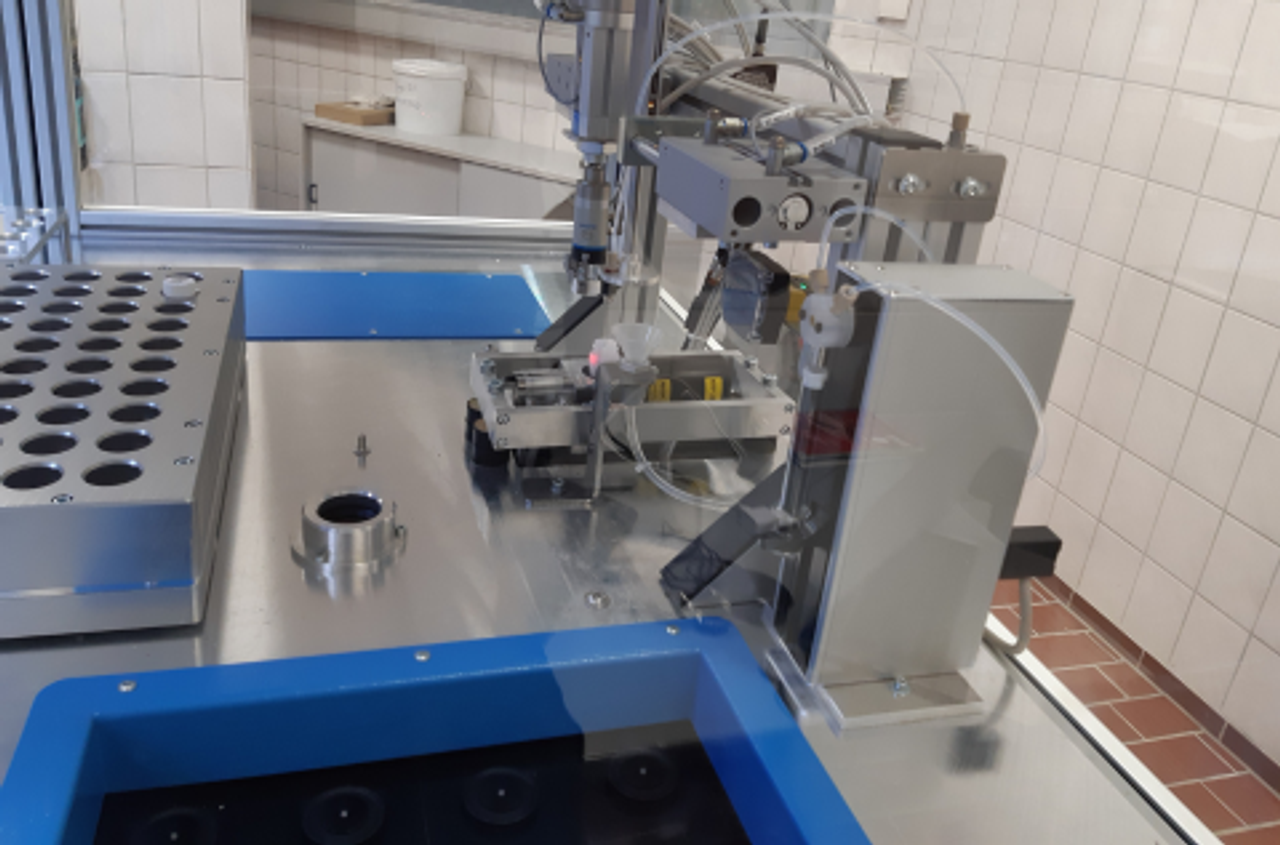

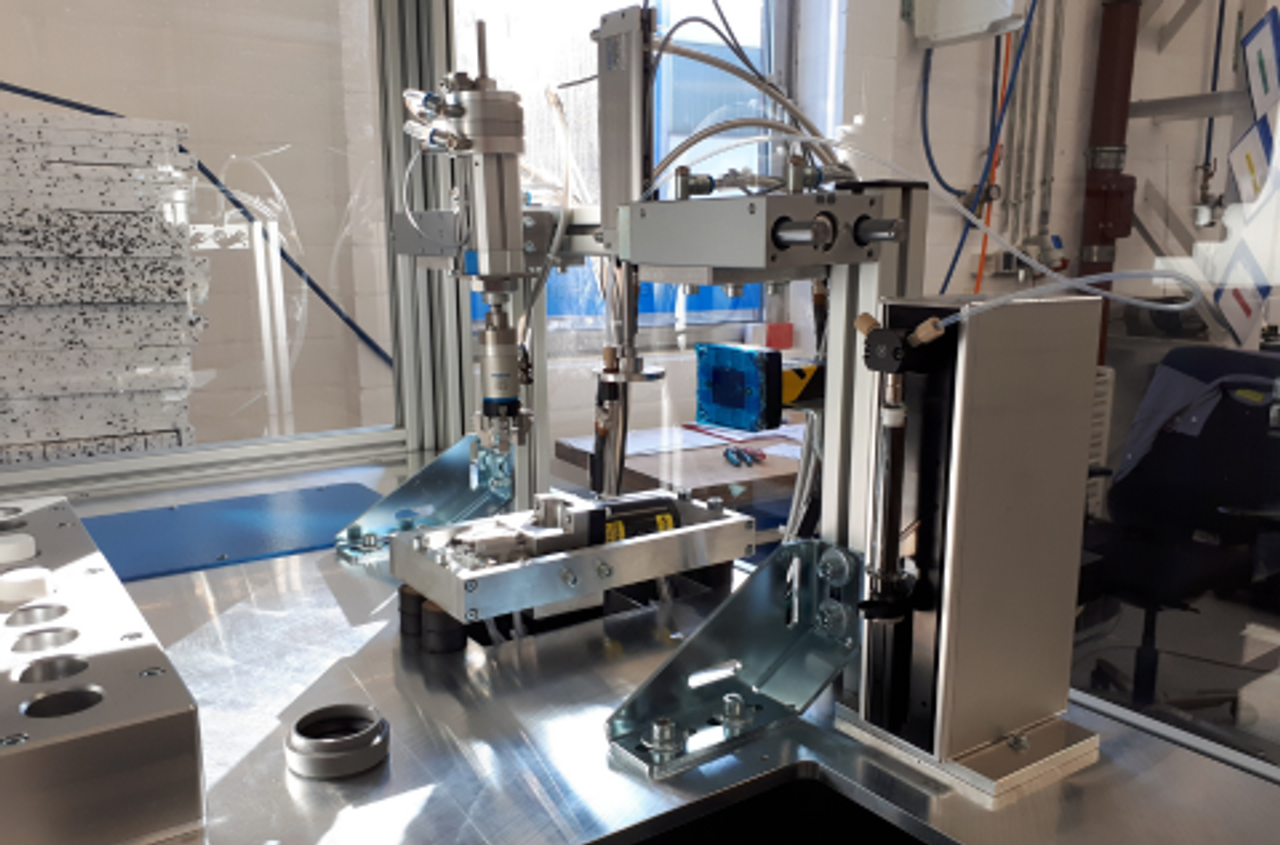

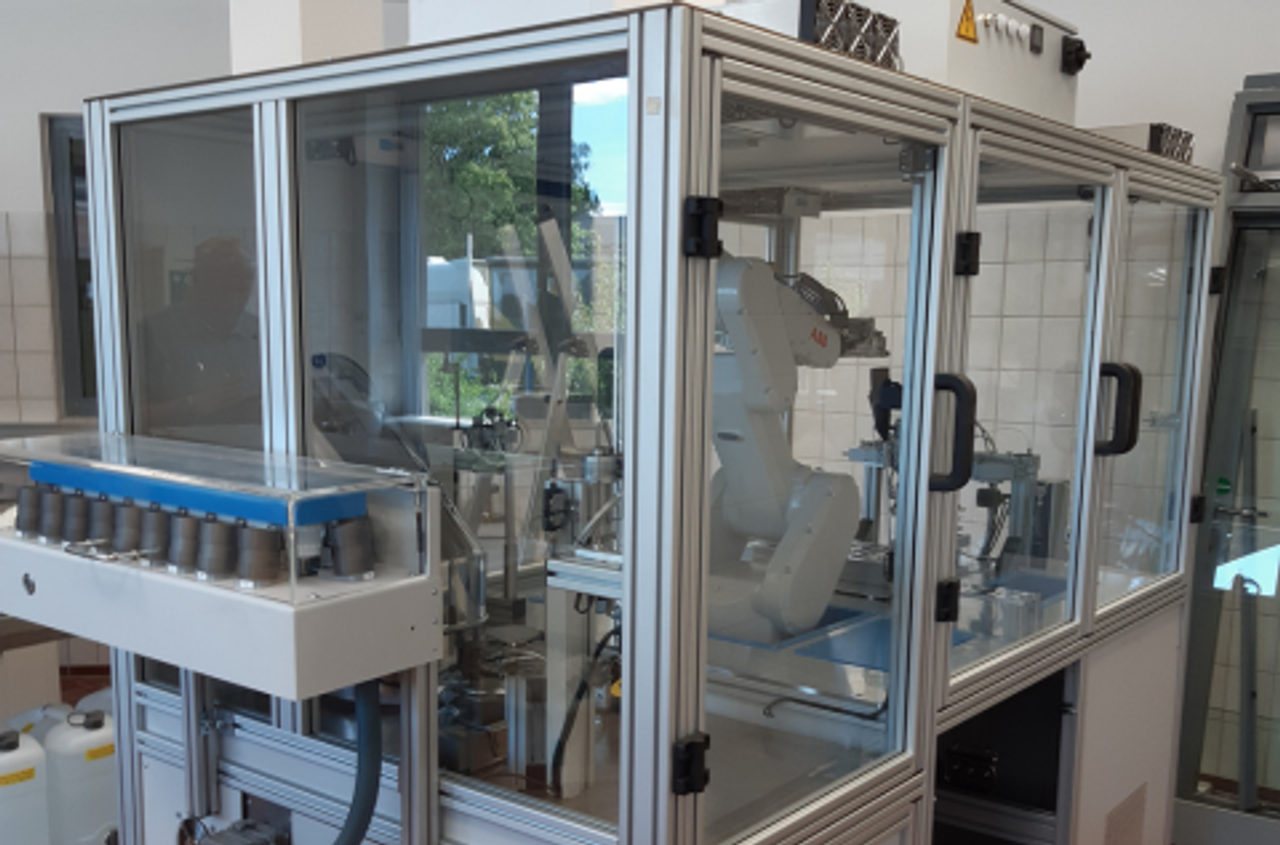

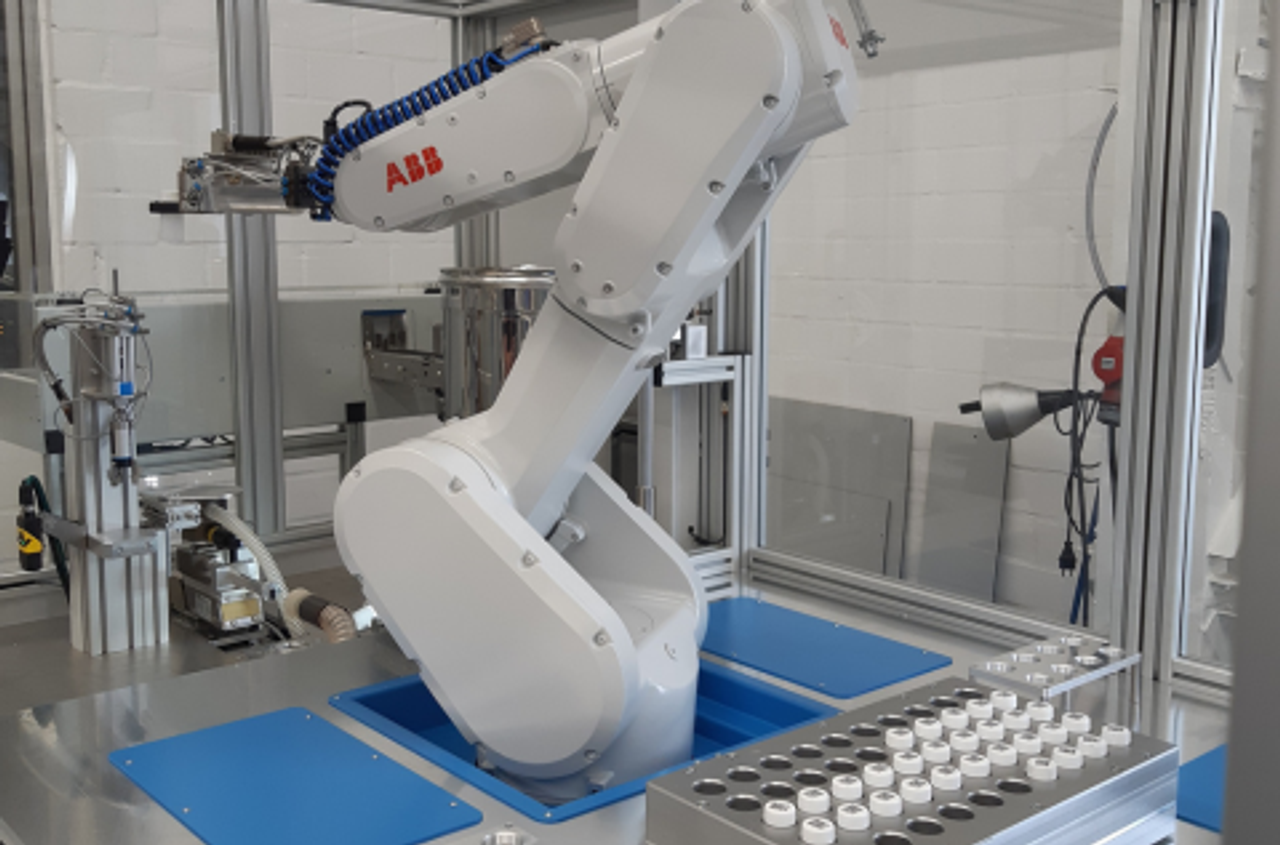

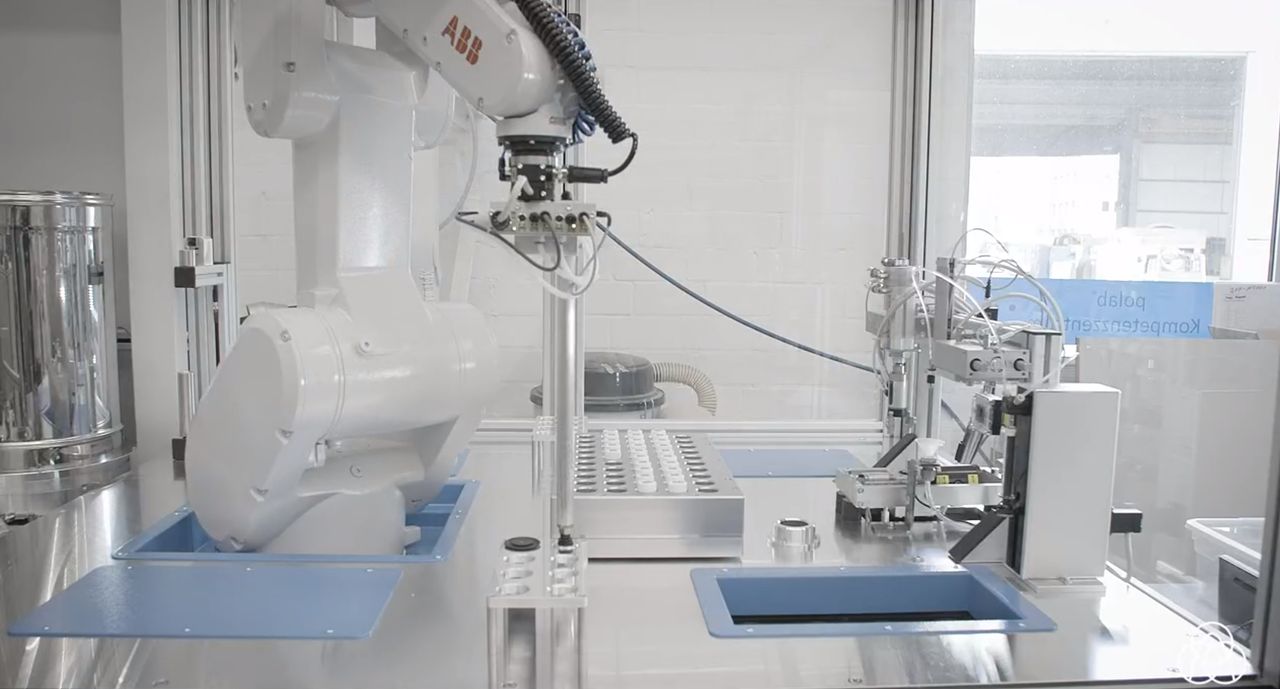

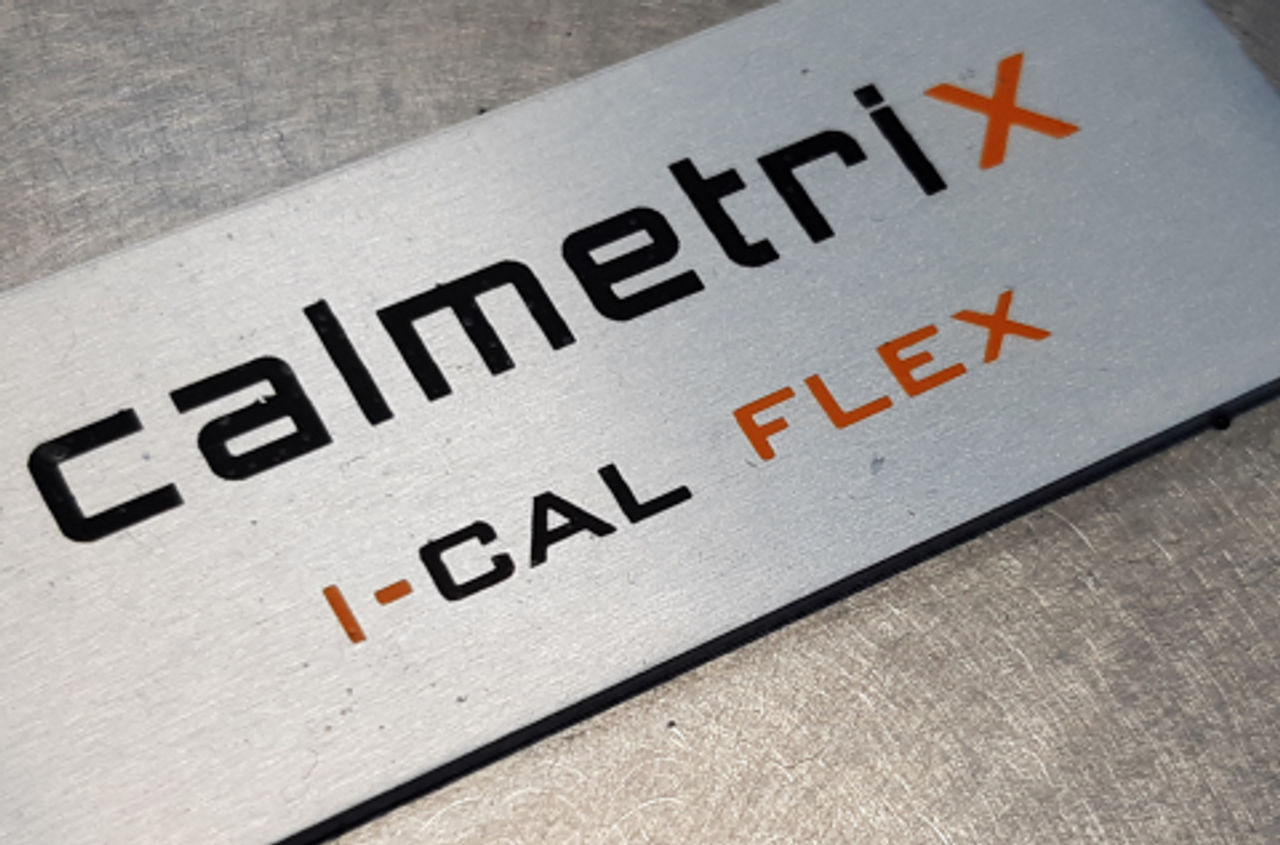

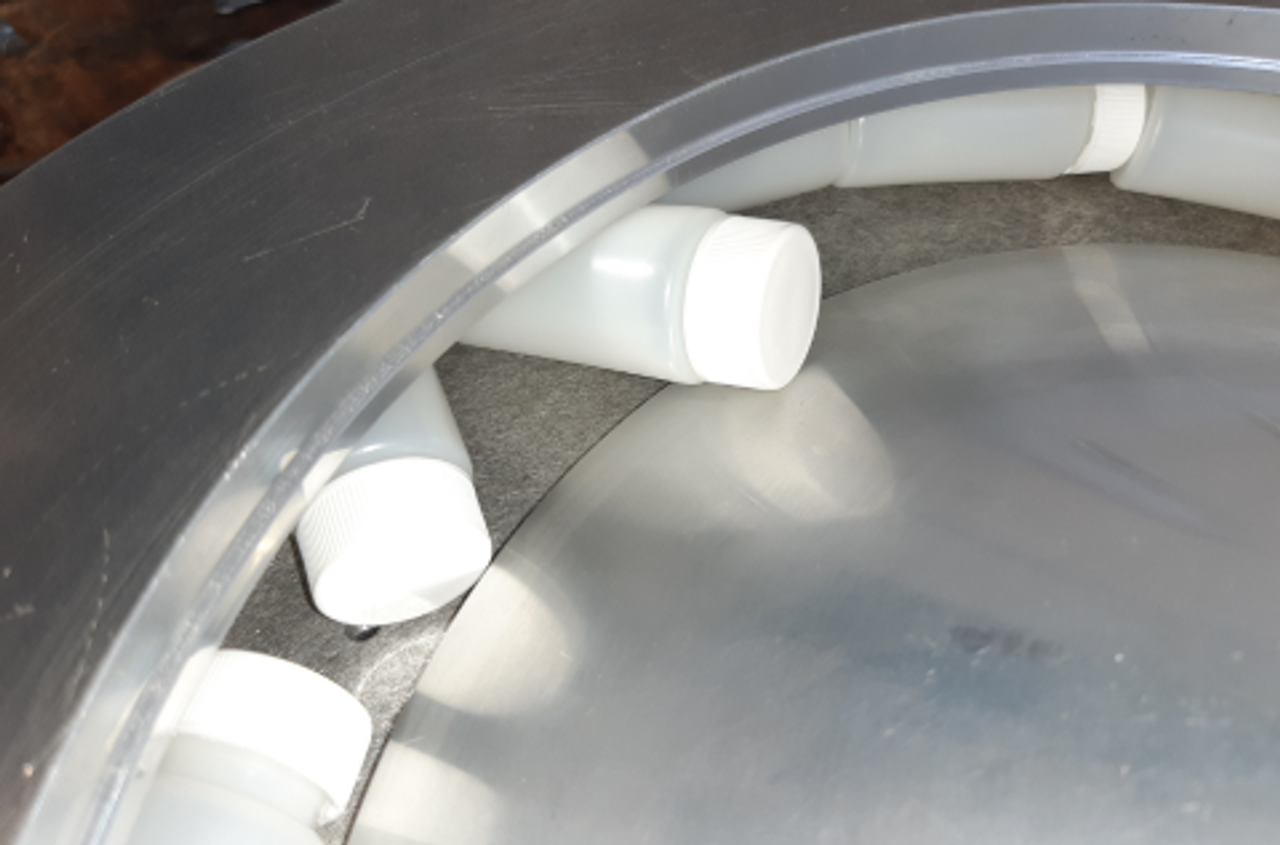

polab® Cal is the first automated calorimetry system that can be fully integrated into polab® laboratory automation systems, or used as a stand-alone unit in R&D and product development. polab® Cal samples are prepared and analysed fully automatically by adjusting binder composition, adjusting w/c ratio, mixing samples, introducing samples into the calorimeter (I-Cal Flex; Calmetrix®), and automated data evaluation. polab® Cal is a modular unit able to operate single or multiple calorimeters. Samples are processed along a time scale based on available free channels in the calorimeters, and according to prioritisation of the user. Spot samples can replace composite samples to correlate reactivity and chemistry and mineralogy results of individual samples in the process control.

polab® Cal tk-play

polab® Cal – advantages at a glance

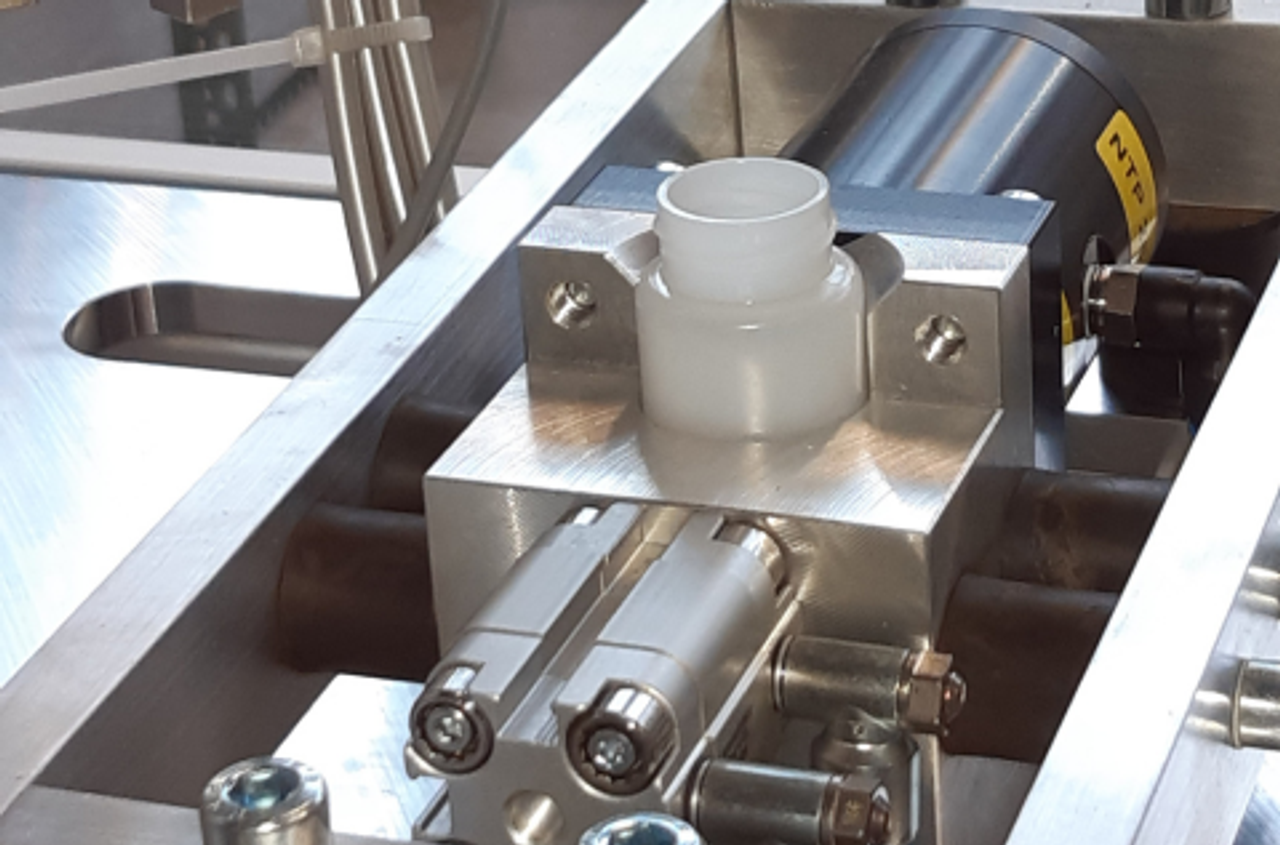

  • Highly reproducible automated mixing procedures

  • Very fast and accurate sample preparation with proven visibility of initial peak

  • Reactivity data is available in less than 60 minutes, and measurements can be extended according to requirements

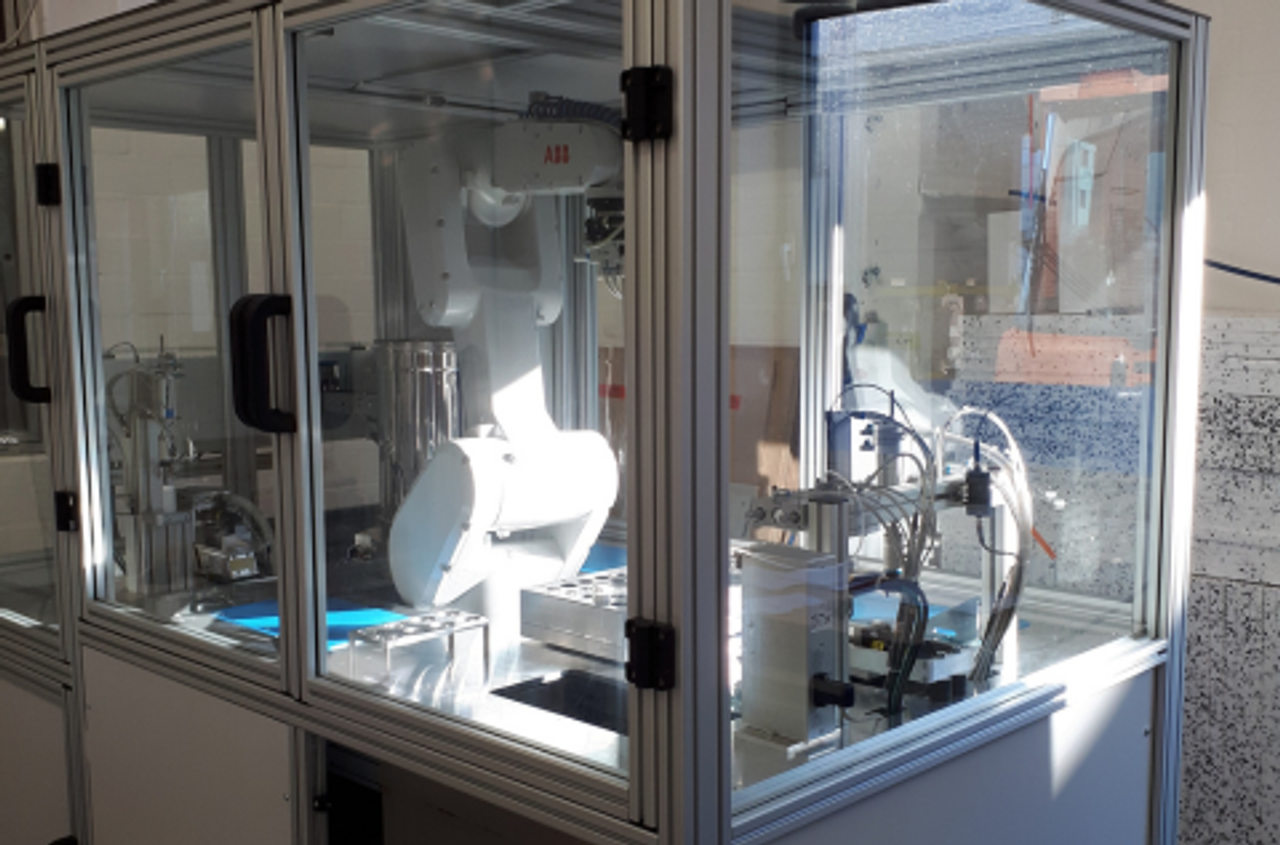

  • In an air-conditioned housing, all materials and the calorimeter are maintained at an ideal temperature

  • 24/7 operation to increase throughput and asset utilisation

  • Integrated data evaluation package with predefined mathematical routines

  • polab® Cal at the kiln improves maintains consistent clinker quality, polab® Cal at the cement mill facilitates optimised separator operations and reduced clinker content in cement. Overall, an optimised specific cost of clinker and cement

Breakthrough in digital process control and of construction material development

polab® Cal analyses calorimetry curves with predefined or user-implemented mathematical routines. Automated data evaluation supersedes traditional visual inspection of calorimetry curves relative to each other. Calorimetry results can be correlated with analyses from the laboratory automation system or a LIMS database. In the cement industry, the user can tune reactivity targets of clinker and cementitious products to improved consistency and market requirements, while simultaneously reducing the costs of the clinker production process.

zoom

polab® Cal is controlled via commercial PLC units and proprietary software for data analysis and storage. Applications for polab® Cal are cement plants, research centres, cement admixture developments, and binder application. polab® Cal represents a breakthrough in digital process control and construction material development.

Contact

Dr. Gunnar Markert
Head of Sales, Digital, Automation & polab

thyssenkrupp Industrial Solutions AG,

Graf-Galen-Straße 17, 59269 Beckum (Germany)

Telephone number:+49 2525 99 - 3369
tk-mail E-mail

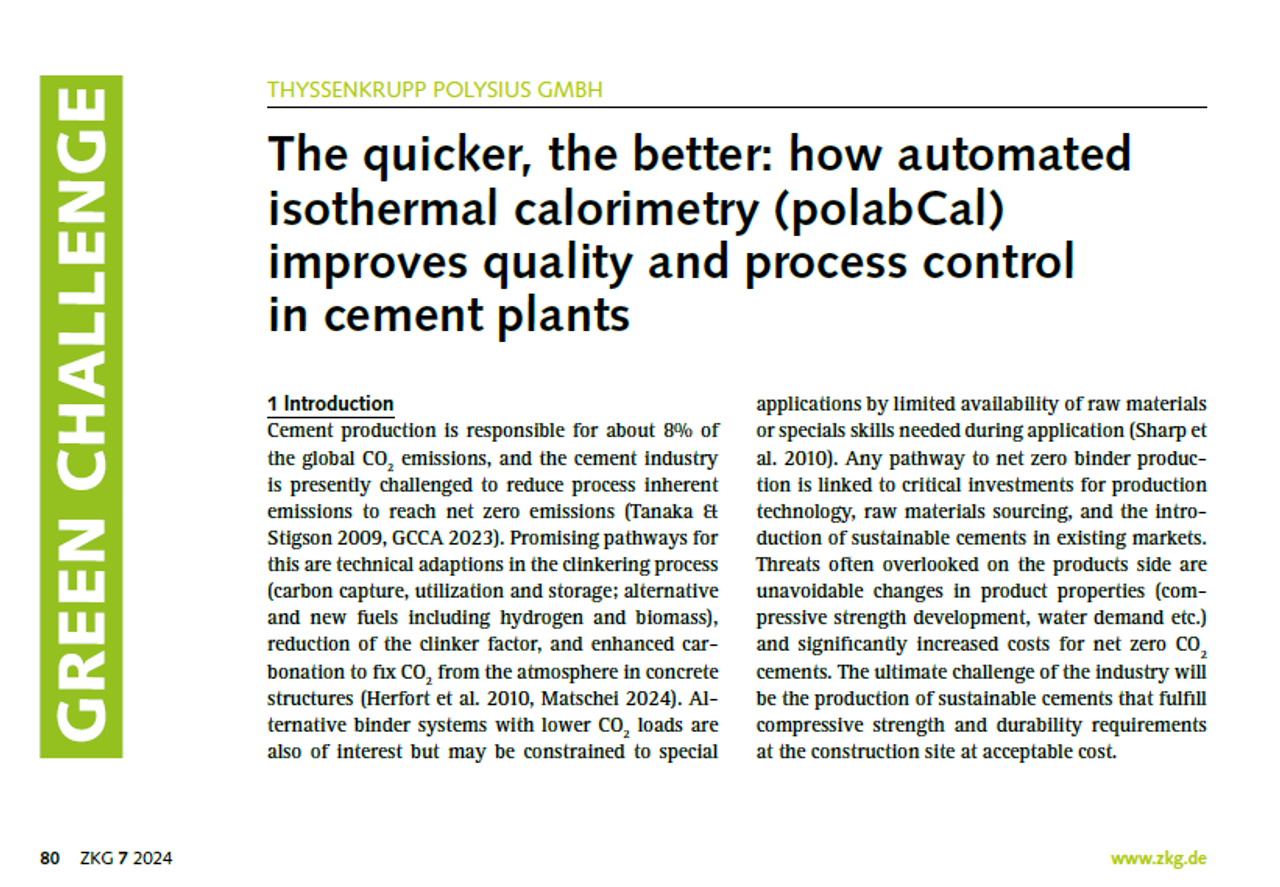

Insights: polab® Cal

World premiere in the cement industry

From process control to quality prediction: Artificial intelligence in clinkering processcontrol

ZKG 3-2021 (www.zkg.de)
For the first time Schwenk Cement, tkIS and Calmetrix linked reactivity data from polab® Cal data to QC data from automated quality control (polab® AMT) and process data. The results confirm, within the first hour of a calorimetric measurement it is possible to characterize clinker reactivity accurately.
  • Click to download
    pdf | 1061.94 kb

The future of process control

International Cement Review, October 2021
The global task to ensure sustainable clinker and cement production has increasedthe complexity of plant operations. New process control technologies, including onlinereactivity measurements, contribute to the production of robust clinker and cement withminimum GHG emissions. Neural networks and AI are the first choice when managing largearrays of process and quality data. A new approach is essential to overcome time gapsfrom process control to systematically delayed compressive strength data.
  • Click to download
    pdf | 1587.32 kb

thyssenkrupp Industrial Solutions and Calimetrix have partnered to develop polab® Cal

International Cement Review, June 2020
Automated calorimetry - the missing link in quality control. polab® Cal - the first automated calorimeter for laboratory automation in the cement industry and other industries. Read the entire story!
  • Click to download
    pdf | 1855.42 kb
