Circular Blending Bed

Discover the potential of storage solutions: With the Circular Blending Bed, material can be stored and reclaimed simultaneously.

The Circular Blending Bed is your storage and homogenisation solution for:

  • Limestone

  • Clay

  • Coal

  • and any mixture of limestone, marl, and clay

A high blending and homogenisation effect can be achieved thanks to continuous stacking using the CHEVCON method. On the other side, if only a low blending effect is required, the CONESHELL stacking method can be used.

Good to know: Large Circular Blending Beds can achieve up to 2500 t/h of stacking capacities and 1500 t/h of reclaiming capacities.

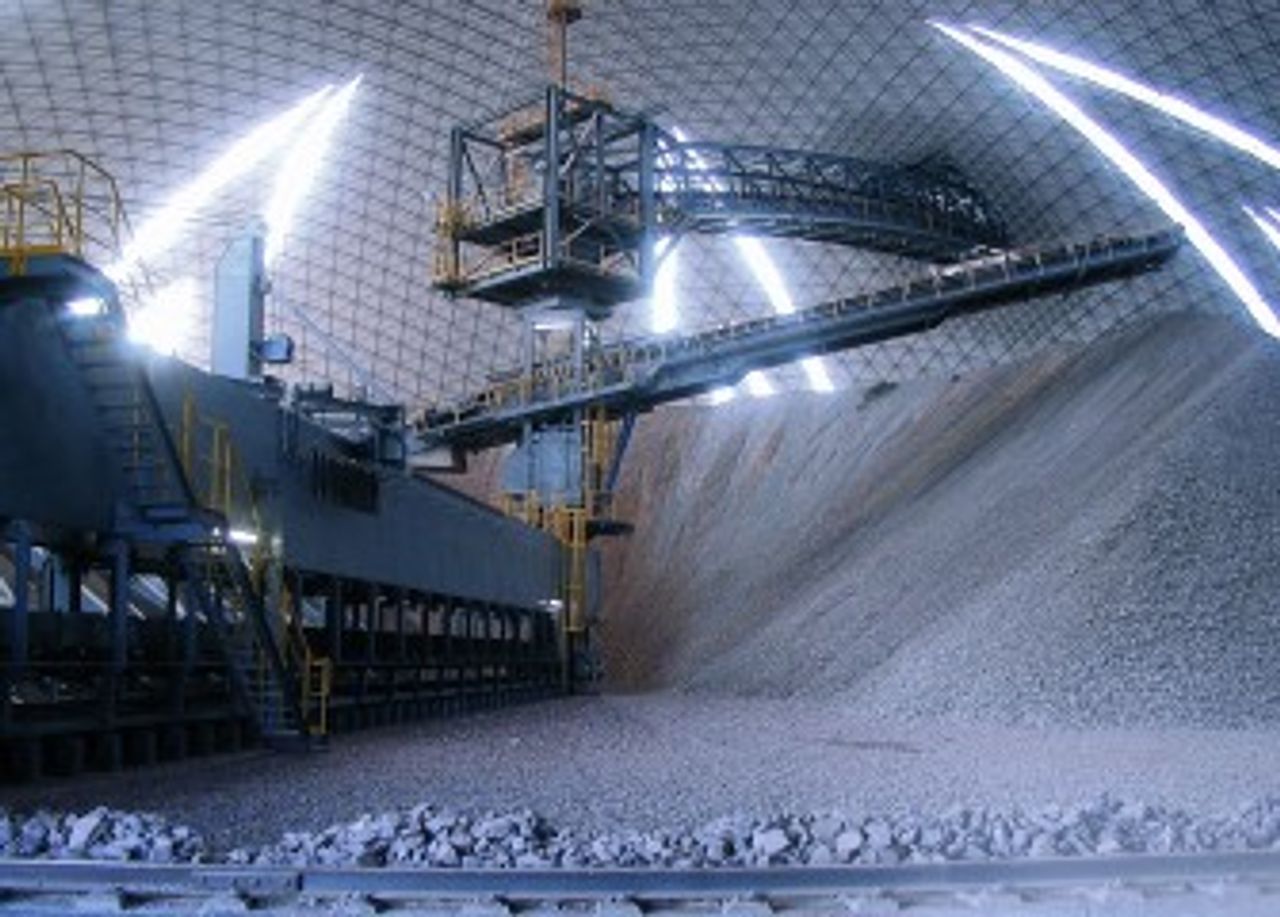

circular blending bed

Circular Blending Bed - the compact, cost-saving solution

There is no stockpile change in the case of the Circular Blending Bed, which means that there are no jumps in the chemical composition of the material reclaimed. In addition, it is possible to feed the mill directly from the Circular Blending Bed, without a corresponding mill feed bin. This is particularly advantageous in the case of materials that are difficult to handle.

Advantages at a glance:

  • Two different designs available: One for easy to normal to handle materials and one for difficult to handle materials

  • Automatic controlled operation of stacker and reclaimer

  • Luffing hydraulic is protected in the central column

  • No cable trolley between reclaimer and stacker, only one cable spiral inside the central column

  • Bow cutters instead of ripping teeth to ensure a material activation of the complete pile activation area

  • Adjustable rake inclination and rake holder to ensure a perfect material flow into the scoops

  • Rake and bridge drive motors equipped with frequency converter to ensure a constant reclaiming rate

  • Outside mounted lifetime lubricated chain guide rollers to reduce loads during operation as well to increase lifetime and availability

  • Easy changeable wear parts of the scoops

  • Hydraulic chain tensioning system

  • Automatic lubrication system for the ball rim bearings and the scraper chain

In relation to the area required, Circular Blending Beds allow higher stock levels in comparison with longitudinal versions. Moreover, the circular version is a convincing choice thanks to lower costs for civil construction work, particularly in the case of the hall, shorter conveying distances and lower investment levels for machines and electrical equipment.

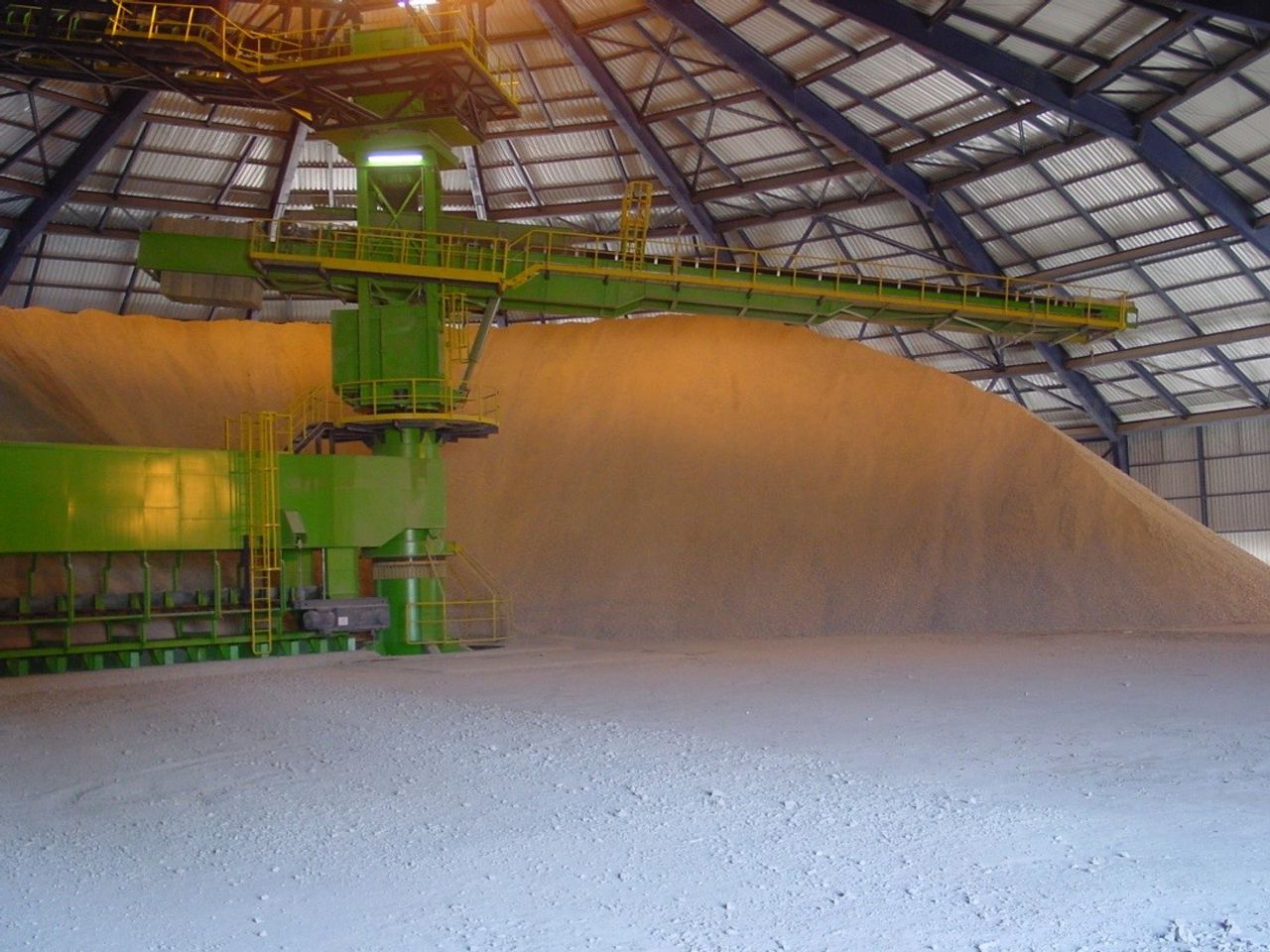

stacker boom circular blending bed
Typical stacker boom of a polysius® circular blending bed

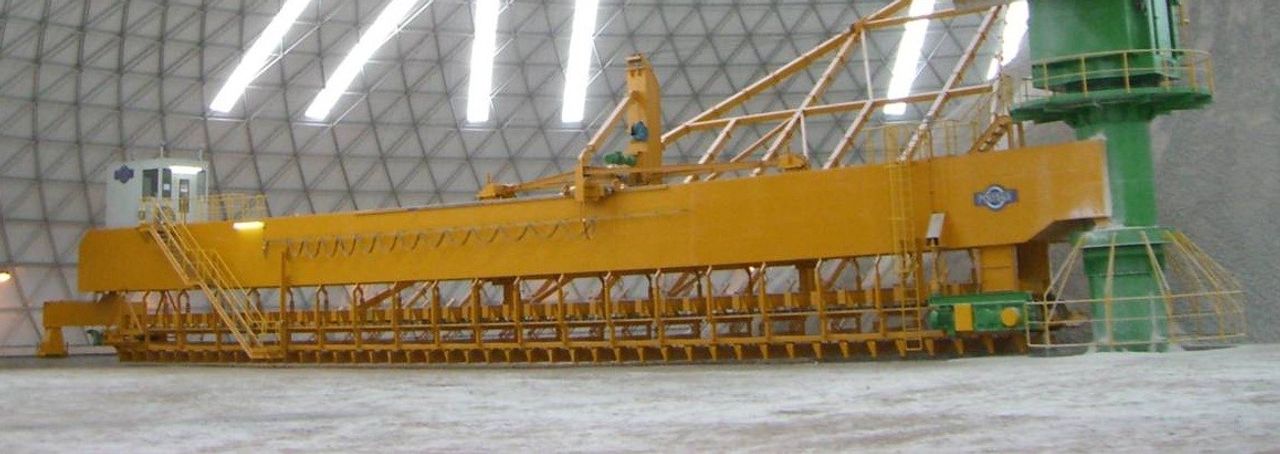

bridge reclaimer circular blending bed
Typical bridge reclaimer of a polysius® circular blending bed
